Description
Metal-Fab Direct Vents utilize a new technology to make their products superior to others. The Special double-wall construction allows direct vent stoves and fireplaces to operate without using air from inside, instead they draw combustion air in from outdoors through the direct vent system. This means that the warm inside air is not being used as fuel, and no fumes, condensation, or smoke will be let into the room.

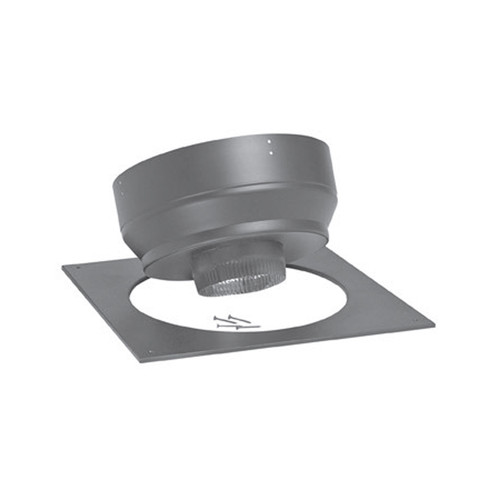

The black ceiling support is designed to support the chimney from the floor or ceiling joists. 6", 7", and 8" chimney fits between 16" O.C. joists with required clearance. A single wall adapter is part of support assembly.
The black ceiling support is designed to support the chimney from the floor or ceiling joists. 6", 7", and 8" chimney fits between 16" O.C. joists with required clearance. A single wall adapter is part of support assembly.
- Temp/Guard Max is the only all-fuel chimney that is UL Listed for 1.5" clearance to combustibles on 6", 7", and 8" diameters
- Sizes 6", 7", 8", 10", and 12" are listed by Underwriters Laboratories Inc. to UL Standard 103HT
- Sizes 6", 7", and 8" are listed by Underwriters Laboratories Inc. to ULC-S529
- Single wall adapter is part of support assembly
Additional Information

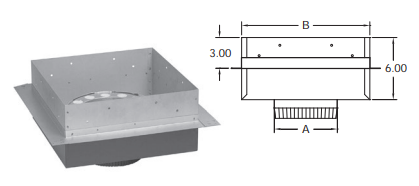

| SIZE | A | B |
| 6" | 6.00" | 12.44 |
| 8" | 8.00" | 14.44" |
Flange Width is 1.5"
