Description
Madison Premium Clean-Face Traditional Fireplace
This traditional fireplace is perfect turn your home into that quaint space for relaxation and quality time. The Slope Glaze Burner included with this fireplace, which is used for all Empire gas logs, creates a rich and authentic flame pattern. The ceramic fiber log set will be the talking point of any evening, each log is hand painted for stunning realism with detailed bark, knots, and charring.
Inspiring Versatility
The tempered glass has been heat treated to increase strength and thermal resistance which helps prevent injury to keep your family safe. Choose from three liners, Cottage Brick, Aged Brick, or Black Reflective. Want to feel like your in a cottage somewhere lost in Norway? Go with the Cottage Brick! Want a more industrial chic look? Try out the Aged Brick. If you're a fan of a modern or contemporary aesthetic the Black Reflective Porcelain reflects the flames for a luxurious effect perfect for you. The optional lighting kit draws attention to the beautiful details in the log set and liners even if the fire isn't lit!
Direct Venting
This in-wall fireplace models venting connects at the top of the fireplace and can run out the wall or through the roof. The fireplace uses 4x6" venting, to see what direct vent options are available for this fireplace check out the features and accessories! Direct Vent fireplaces draw in fresh outside air to support combustion and exhaust combustion by-products to the outdoors, all this and it only requires a single hole through the wall or roof.
- Tempered Glass
- Slope Glaze Burner
- Available in Millivolt Control Series or IP (Intermittent Pilot) Control Series
- Available in Natural Gas or Propane
- BTU output of up to 24,000
- Our price includes the ceramic fiber log set required for installation.
Installation Requirements
- Direct venting connects to the top of the fireplace, but can run out the wall or up through the roof
- Uses 4 x 6 5/8 top Direct Venting
- Liner must be chosen
- Ceramic log set required
Optional Accessories
- Variable Speed Blower
- Lighting Kit, 120V (includes Rheostat)
- Hand Held On/Off w/ Battery Reciever (Millivolt)
- Hand Held Thermostatic Remote (Millivolt)
- Remote Kit, Variable Flame Height (IP, only available in Natural Gas, call for Propane)
- Optional DV Fireplace Flexible Vent Kit (Horizontal) for a simplified venting experience, must use the 6-in pipe adapter listed as an accessory! Not sure if this kit will work with your walls? No worries! Visit our Direct Venting page to see all of your options. Please call to discuss what venting works best for you.
Additional Information

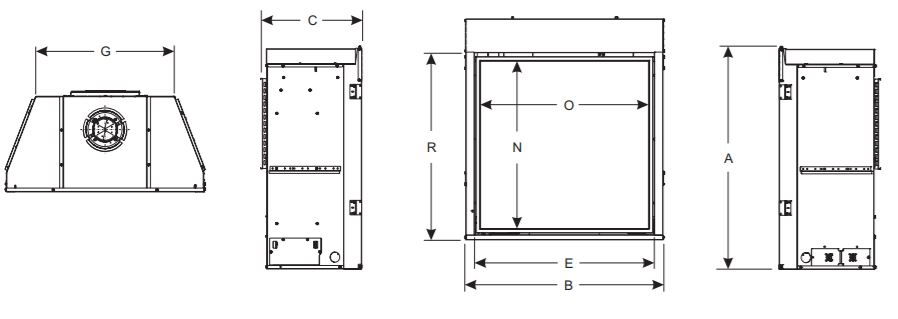

Product Dimensions:
Measurements given in inches
Product Warranty: 10-year limited warranty on combustion chamber, limited lifetime on glass. All other parts carry a three-year limited warranty. All remote controls carry a one-year limited warranty.
| Model | A (Max Height) | B (Max Width) | C (Max Depth) | E (Width) | G (Rear Exterior Width) | N (Viewing Area Height) | O (Viewing Area Width) | R (Floor to Top of Fireplace Opening) |
| DVCP36BP | 38.125 | 37.4375 | 17.50 | 34.00 | 26.9375 | 24.875 | 30.50 | 32.25 |
Product Warranty: 10-year limited warranty on combustion chamber, limited lifetime on glass. All other parts carry a three-year limited warranty. All remote controls carry a one-year limited warranty.
Specifications
